CT elbow joint scan

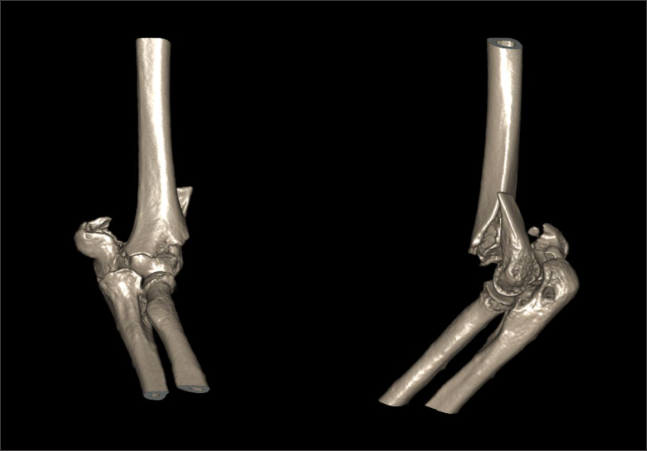

3D surface rendered images of CT elbow joint.

Similar expressions

CT elbow/ CT EJ/ NCCT elbow

Introduction

CT elbow protocol is used to evaluate conditions ,including fractures, implant complications and neoplasm. Its ability to view structures in three dimension (3D) is remarkable for surgical planning.

Patient preparation

  • Explain the procedure kindly and clearly to the patient.
  • Remove radio opaque items related to the elbow area.

Patient positioning

There are several positioning methods.

Method 1 - patient in supine, head first.

  • Raise the affected arm above the head and keep the unaffected arm besides the body.
  • Center the affected elbow in the iso-center.
  • Extend the affected elbow-with palm facing upwards.
  • Bend patient's head towards unaffected arm.
  • Place a sand bag on the middle of the forearm to immobilize the affected elbow.

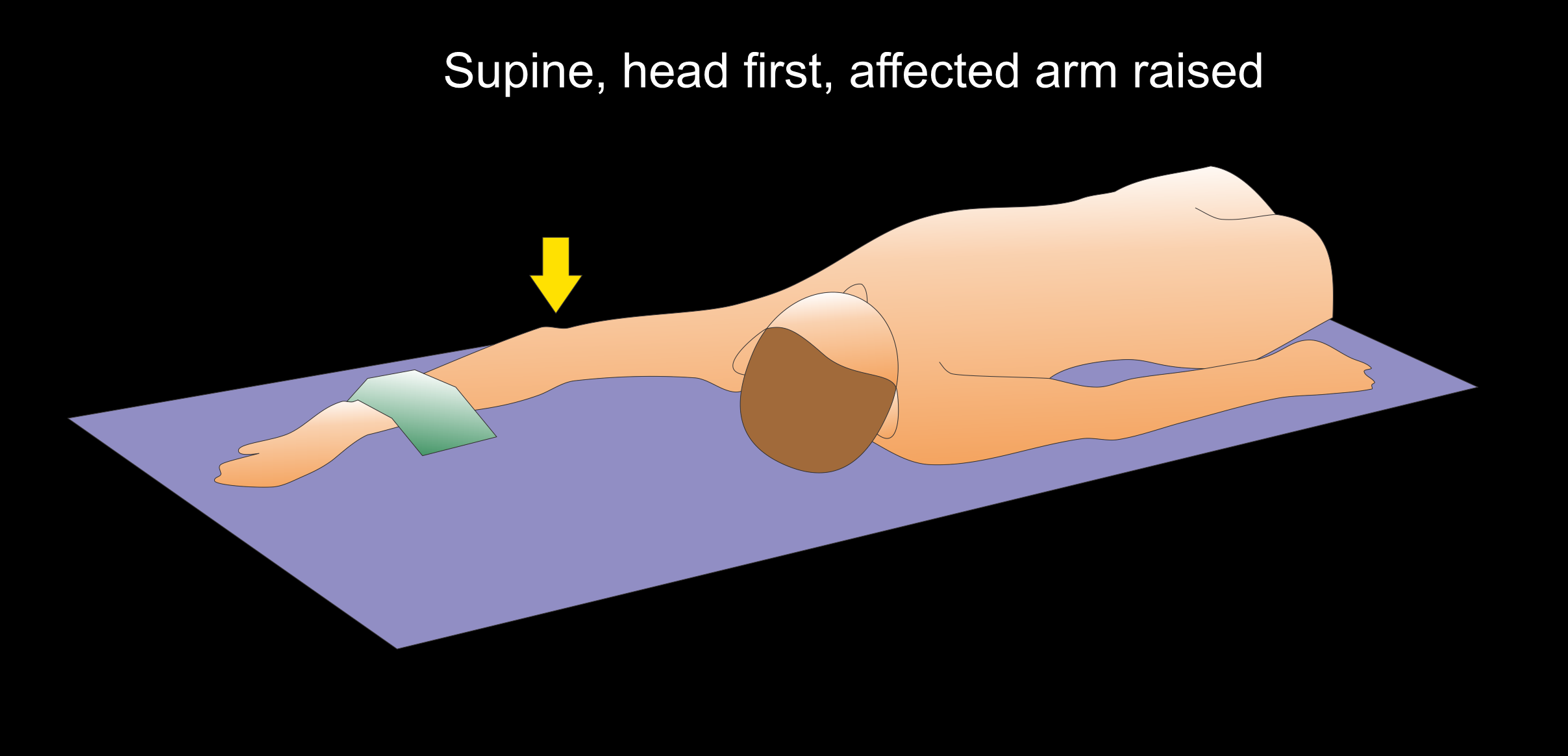

Illustration shows positioning for CT elbow joint scan - position in supine, head first and affected arm raised.

Method 2 - patient in prone, head first.

  • Raise the affected arm above the head and keep the unaffected arm besides the body.
  • Center the affected elbow joint in the iso-center.
  • Extend the elbow-with palm facing downwards.
  • Bend patient’s head towards unaffected arm.
  • Place a sand bag on the middle of the forearm to immobilize the affected elbow.

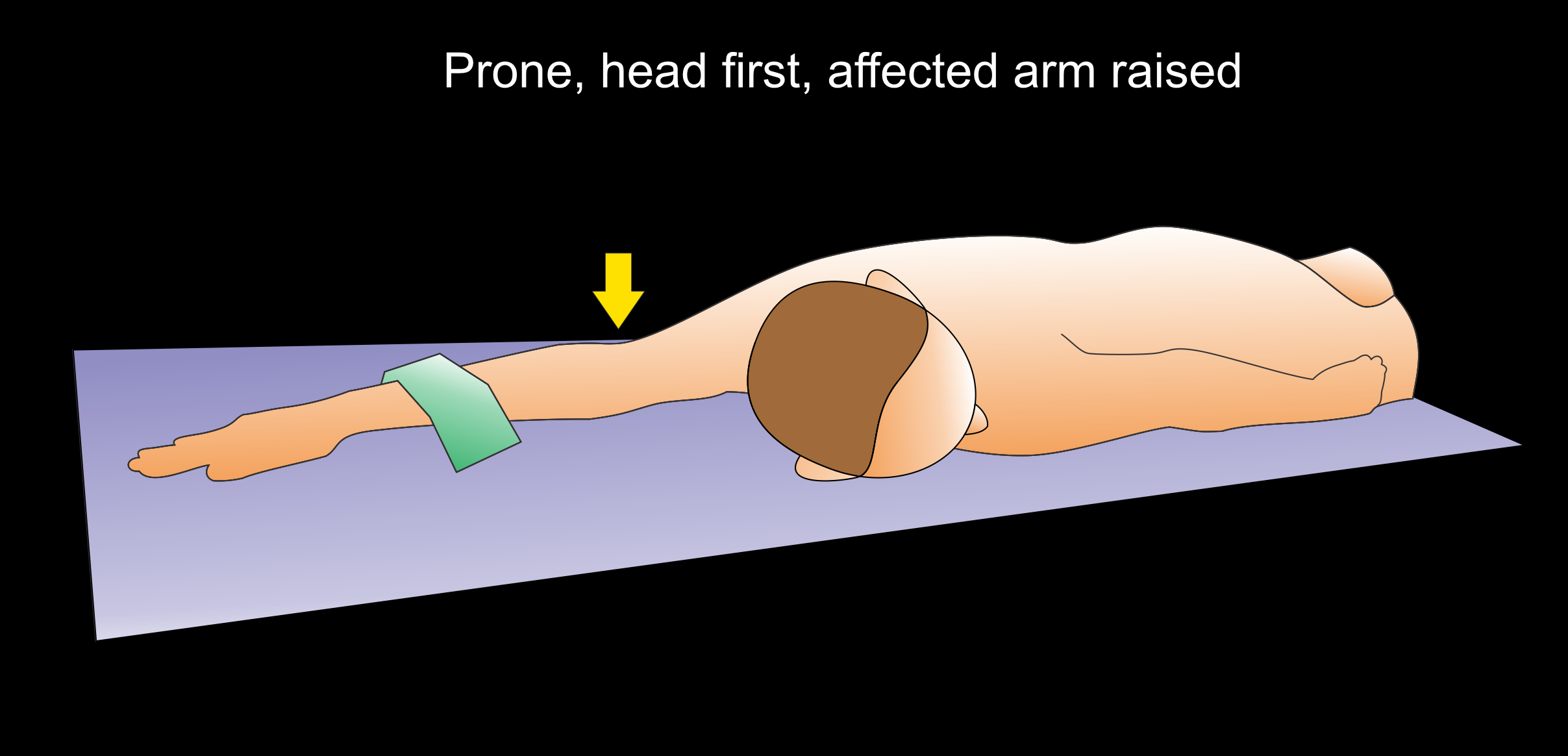

Illustration shows positioning for CT elbow joint scan - position in prone, head first and affected arm raised.

Method 3 - patient in lateral decubitus.

  • Position the patient in lateral decubitus on the affected side.
  • Raise the affected arm above the head.
  • Fully flex the neck and move the head anteriorly.
  • Supinate the hand.

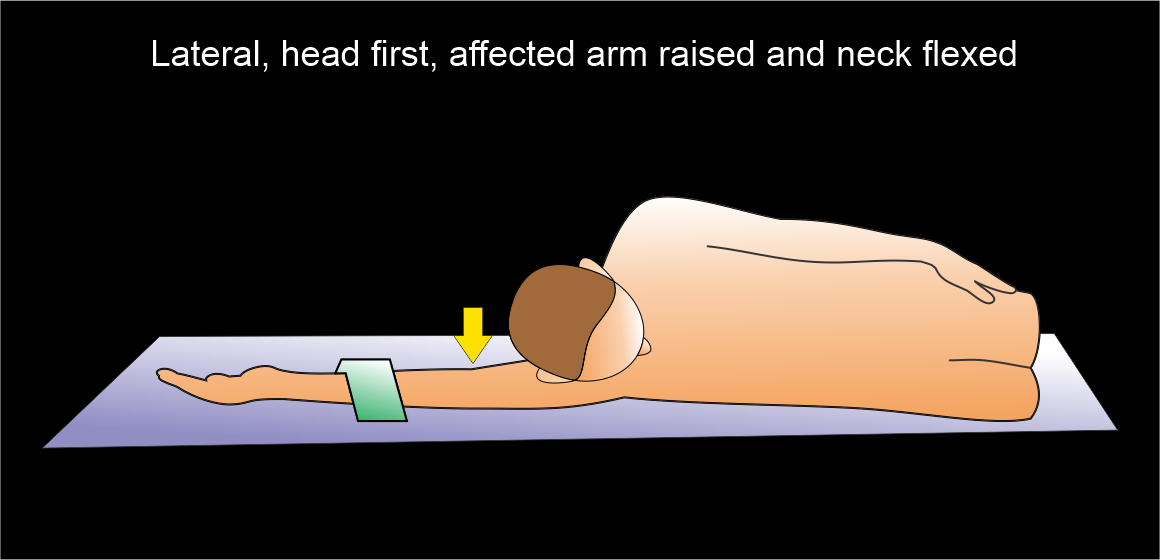

Illustration shows positioning for CT elbow joint scan - position in lateral, head first, affected arm raised and neck flexed.

Explanation: hand in the iso-center increases image quality and lowers radiation exposure.

Scan planning

  • Plan the scan slab to cover from the distal humeral metaphisis to proximal 1/3 of radius and ulna.
  • Reduce the field of view (FOV) as appropriate to include elbow joint.

Explanation: small FOV increases geometric resolution.

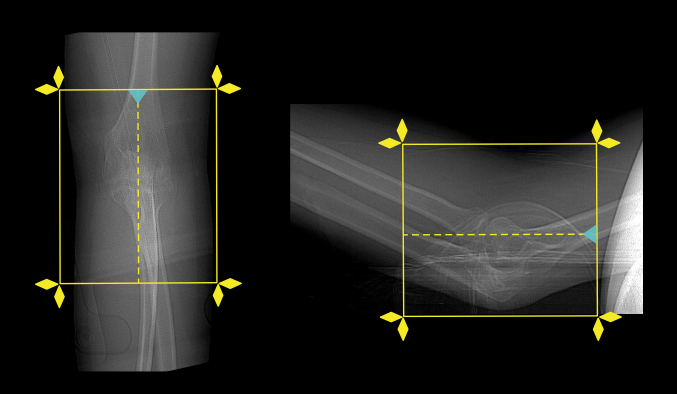

image information here

Post-processing

  • Coronal, sagittal and axial images in both soft tissue (WW:500, WL:50) and bone (WW: 3500, WL: 350) window with ≤2mm slice thickness.

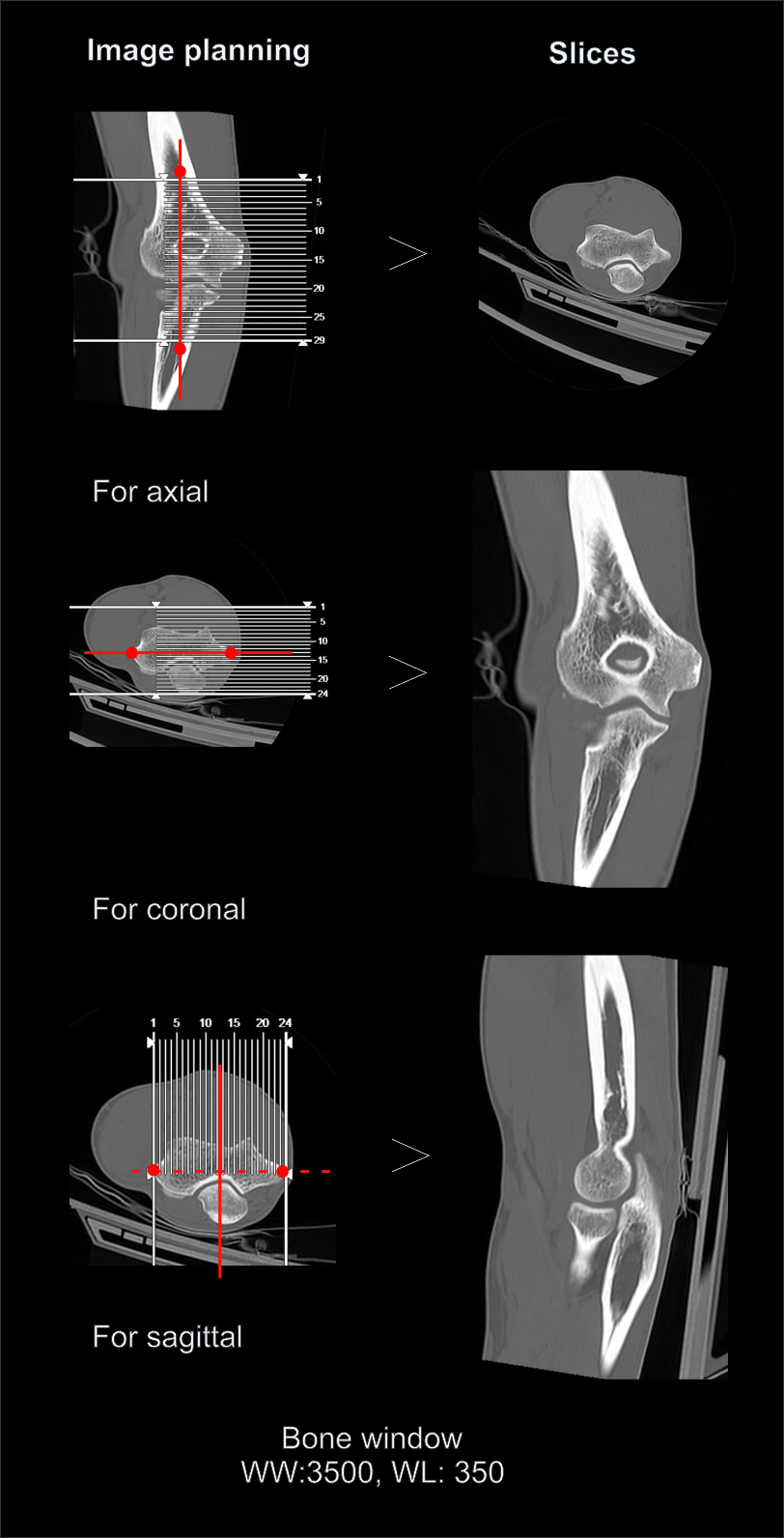

Multi planar reformation (MPR) for CT elbow joint scan.
  • 3d images to show pathologies clearly.

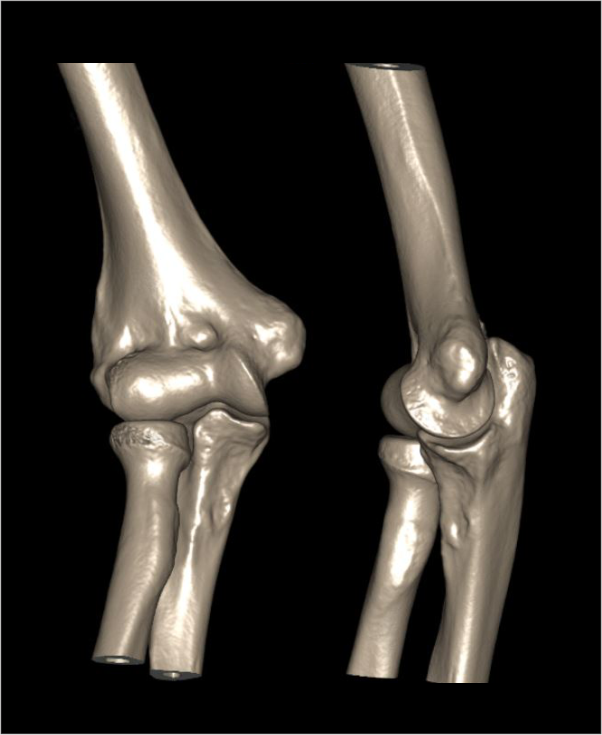

Demonstrates 3D surface shaded display image of a CT elbow joint scan.
