CT non-contrast kidneys, ureter and bladder (KUB) scan

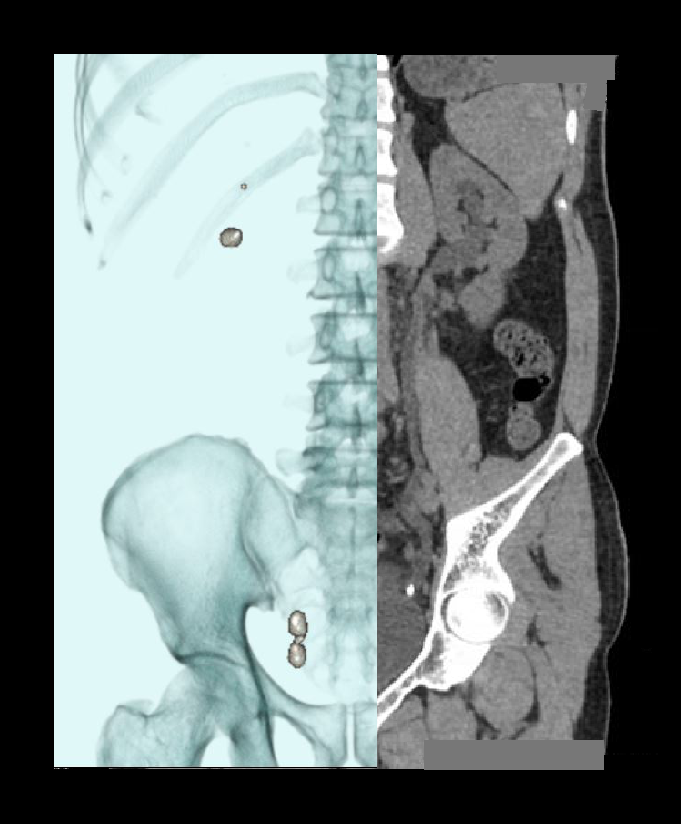

Altered images of a NCCT KUB scan.

Similar expressions

NCCT KUB, CT KUB

Introduction

NCCT KUB is used to detect renal stones and locate their path in the urinary track. After recognizing renal calculi, size is accurately measured to predict the stone movement through the ureter.

Patient preparation

  • Explain the procedure clearly and kindly.
  • Check the suitability to expose radiation.
  • Ask the patient to remove metals related to the interested region.
  • Provide 1000ml of water to drink within 20-30min without emptying the urinary bladder.

Explanation: this is to adequately fill the bladder with urine, which promotes visualization of ureters.

  • Start the scan when the patient’s having a fully filled bladder.

Patient positioning

  • Position the patient in feet first and supine.
  • Place both hands above the head.

Explanation: this reduces streak artifacts form the hands, also it avoids unnecessary radiation exposure.

  • Center the scanning area in the scanner iso-center [6].

Explanation: this reduces overall radiation exposure and increases image quality.

  • Instruct the patient to breath in and hold during the scan.

Explanation: avoids motion un-sharpness of kidneys.

  • Set the scout start point at the nipple level and scan direction out of the gantry.

Scan planning

Scan needs to be conducted when the patient is having a full bladder. It is usually considered that an adequately hydrated patient is having a full-bladder nearly after 45 minutes from the last urination.

  • Plan the scan slab to start above kidneys and to end below pubic symphysis.

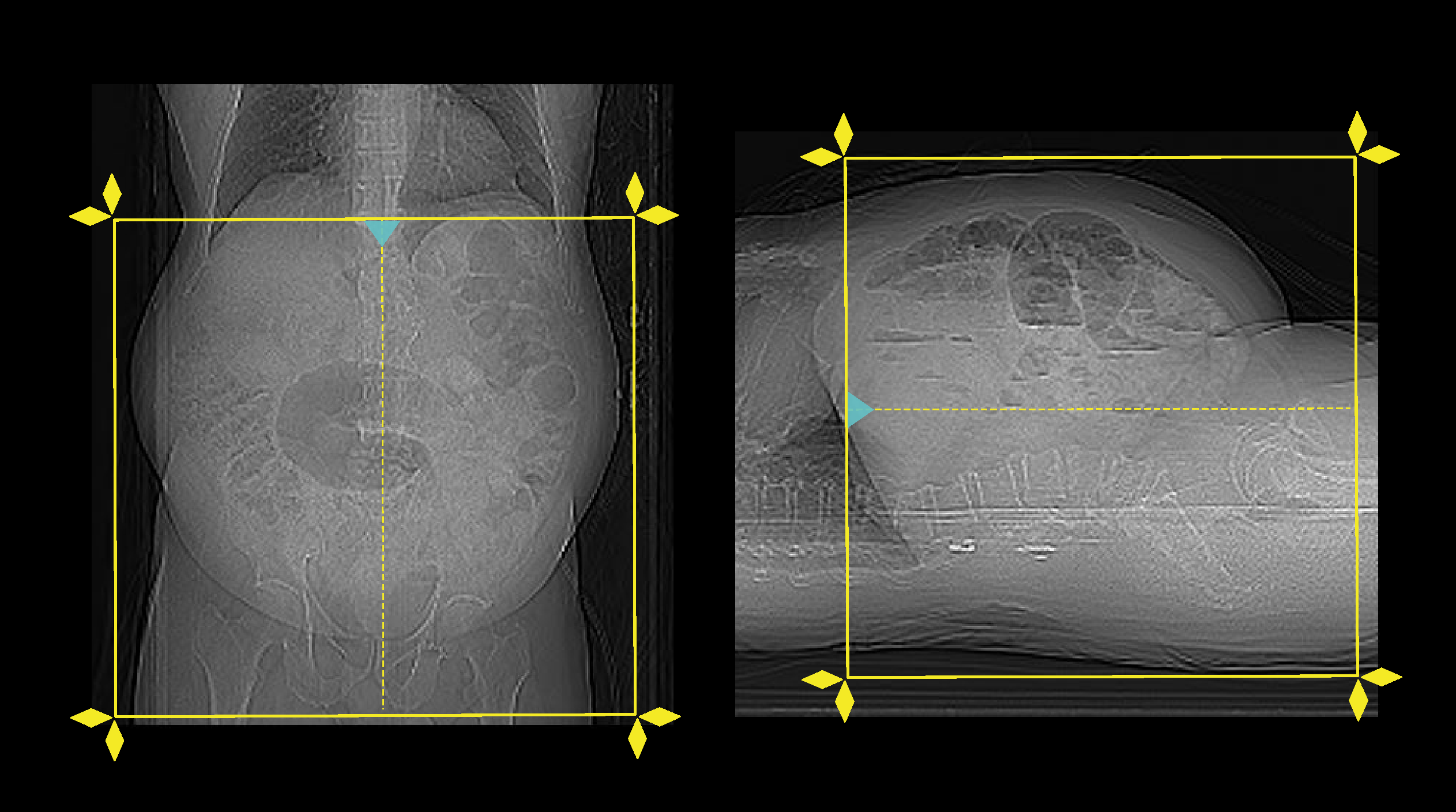

Demonstrates scan slab planning for CT non-contrast KUB scan.
  • Conduct the scan under arrested inspiration.

Post-processing

  • Multiplanar reconstruction (MPR) images for all phases in soft-tissue window (WW:500, WL:50) with slice thickness ≤ 5mm – refer to non-contrast abdomen scan for images.
  • Layered 3D images to show stones with respect to the lumbar spine.

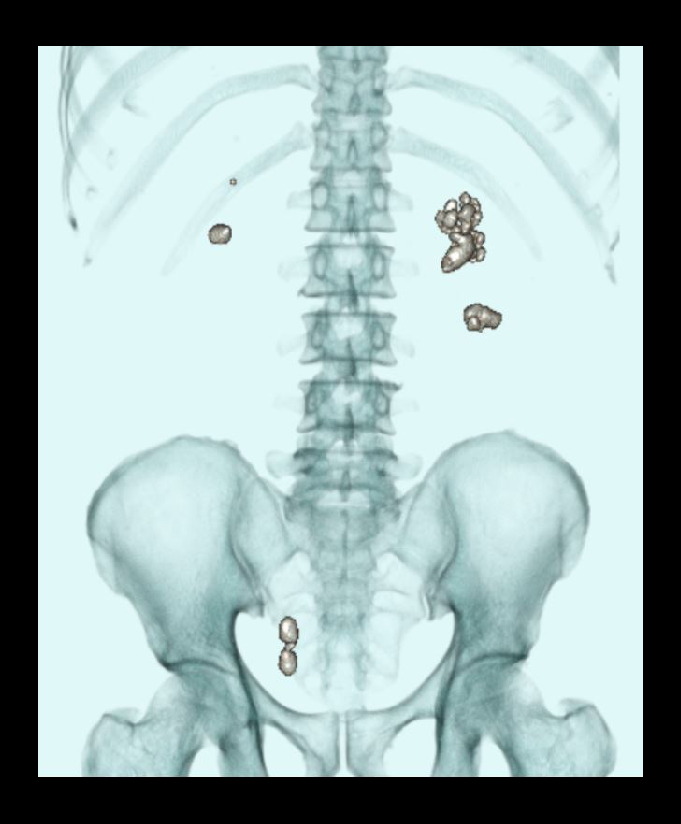

Layered 3D surface rendered images of a NCCT KUB, demonstrating renal stones.
  • Curved MPR images to show both ureters.

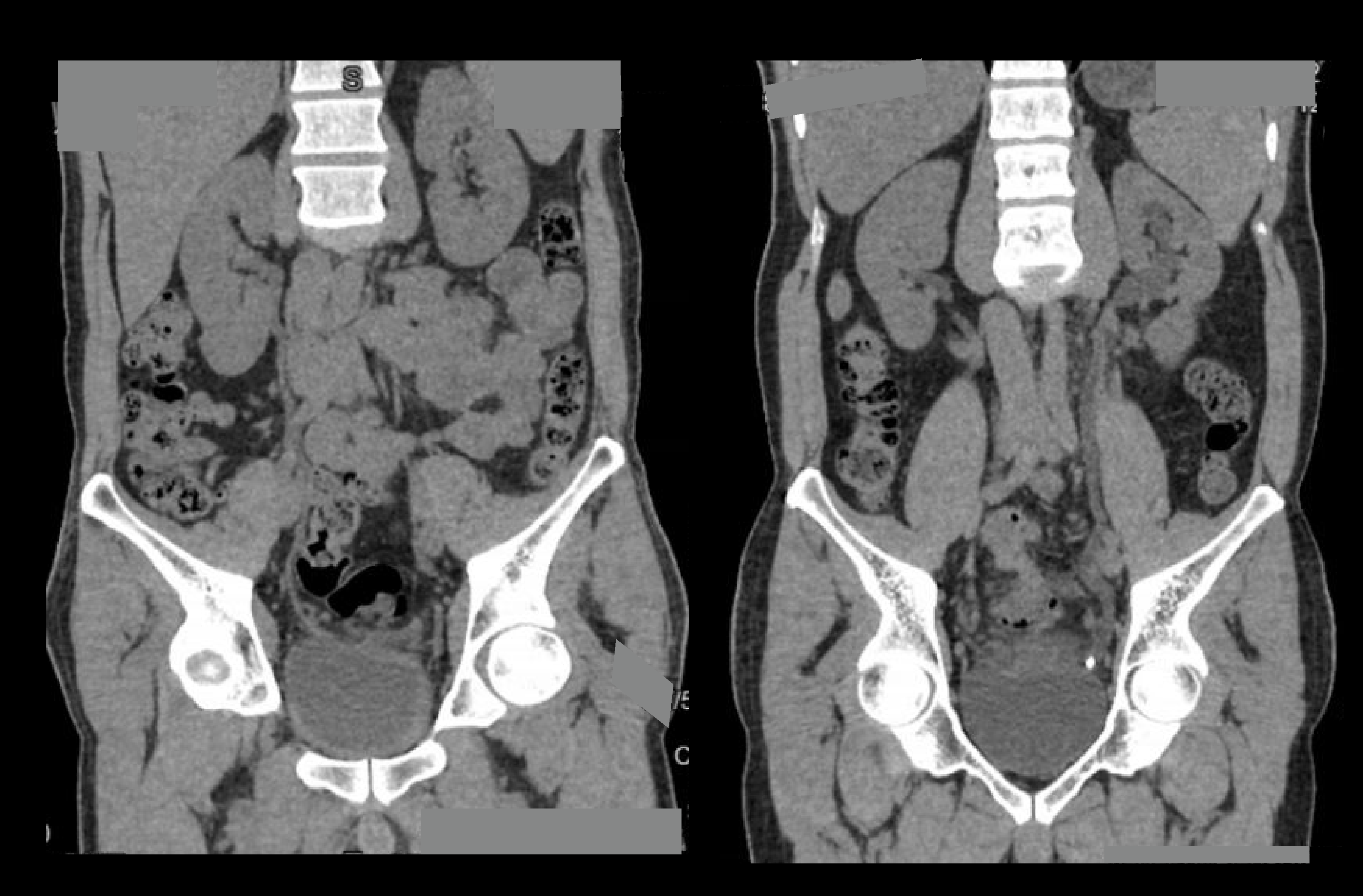

Demonstrates length and density measurements of renal stones detected in a CT non-contrast KUB scan.
  • Measurements in length and width of each calculus.

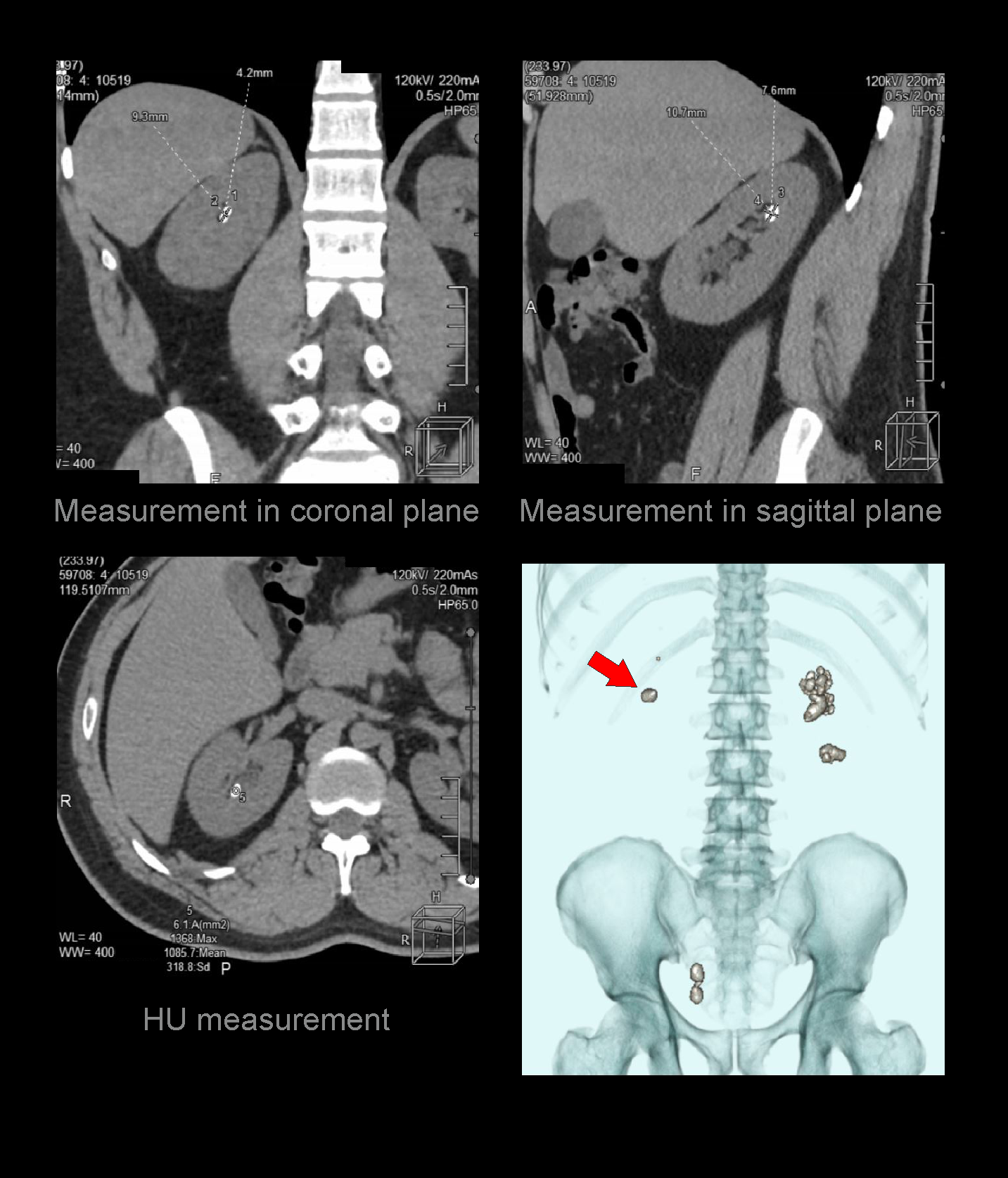

Demonstrates length and density measurements of renal stones detected in a CT non-contrast KUB scan.
  • Measurement in Hounsfield unit (HU) of each calculus.
