CT pulmonary angiography (CTPA)

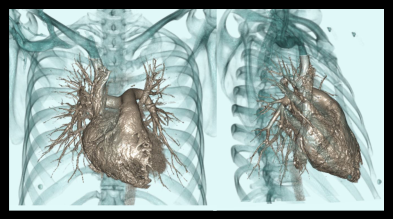

Laired surface shaded images of CT pulmonary angiography.

Similar expressions

CTPA, CT pulmonary angio, CT pulmonary angiography, CT pulmonary angio contrast, CTPE

Introduction

CTPA is a special study that is used to diagnose pulmonary embolisms. Contrast media is used to enhance the main pulmonary artery and its branches.

Patient preparation

  • Explain the procedure clearly and kindly.
  • Remove metals related to the scanning area (underwear, necklaces).
  • Check contraindications for contrast media administration and radiation exposure.
  • Place an Intra venous (IV) cannula in a stable vein of the right arm – green-18G cannula.

Explanation: Green cannula has higher lumen diameter, which can withstand higher flow rate. A right arm injection is preferred in thoracic CTA because to avoid streak artifacts from undiluted contrast media in the left brachiocephalic vein.

  • Practice breathing technique, breath in and hold at a comfortable level without having a fullinspiration.

Explanation: holding the breadth at a full inspiration can reduce blood flow through thepulmonary trunk, resulting minimally enhanced pulmonary arteries.

Patient positioning

  • Position the patient in supine and feet first on the imaging couch.
  • Center the scanning area in the scanner iso-center [6].

Explanation: this reduces overall radiation exposure and increases image quality.

  • Raise both hands above the head and place a positioning aide under them.

Explanation: hands beside the trunk give streak artifacts and increase radiation exposure.

  • Keep the arm with the IV cannula strait.

Explanation: to  facilitate contrast flow.

  • Plan scan starting point at the lower neck.

    Scan planning

    Usually, only arterial phase is performed, but pre-contrast step can be included according to diagnostic needs of the patient.

    • Plan the scan slab to cover from lung apex to posterior costophrenic sulci.

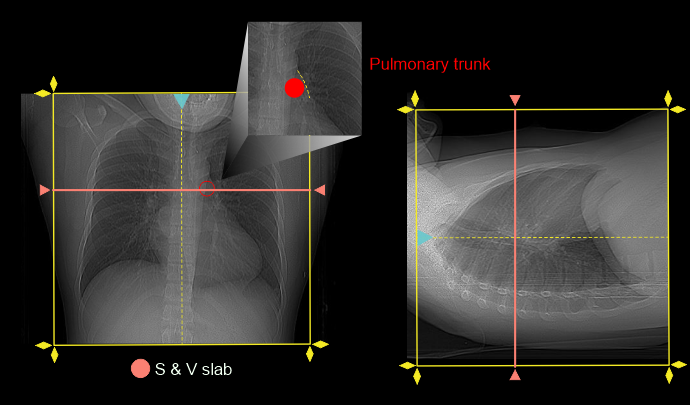

    Demonstrates S & V slice placement and scan slab planning for CTPA scan.

    Arterial phase initiation is comparatively a challenge in CTPA because contrast reach pulmonary trunk before it reaches lungs and aorta. It is important to remember that late acquisition causes pulmonary veins to appear in images, which makes it hard to differentiate pulmonary arteries from veins. Therefore, scan acquisition should be quick and on-time, and this can be achieved by either test bolus or bolus tracking method.

    Method 1 - bolus tracking

    • Place scan and view (S & V) slab at the mid-level of pulmonary trunk.
    • No delay time between arterial scan and S & V.

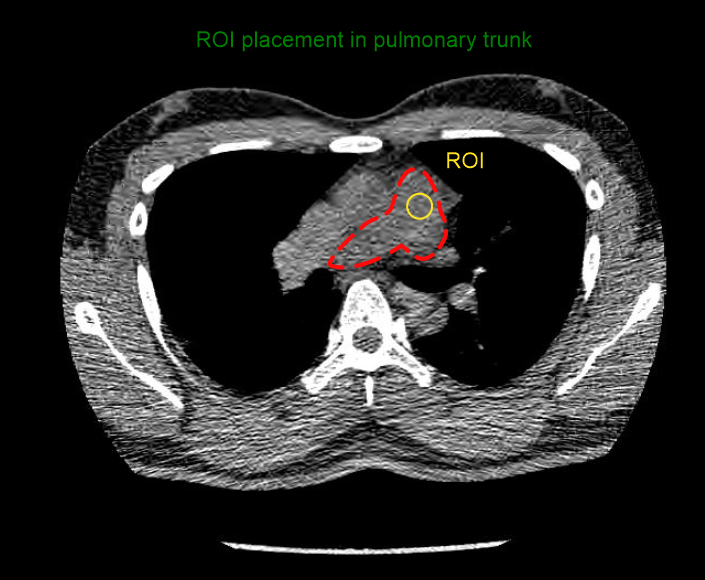

    • Place triggering ROI in the pulmonary trunk.
    • Preset breadth hold command to start after 6 seconds from contrast injection.

    Explanation: this is to avoid a delayed acquisition. In detail, it takes nearly 5 seconds to complete a breadth hold command, and that time is just right to delay the scan. However, an early breadth hold is achieved by making the patient to hold the breadth prior to pulmonary enhancement.

    • Preset threshold value to 180 Hounsfield units (HU).

    You can find a detailed explanation of bolus-tracking technique in our thoracic aortogram article.

    Method 2 - test-bolus

    • Follow S & V slice and triggering ROI placement as mentioned in the bolus tracking method.
    • Use 10ml of contrast media with the same injection rate (4.5-5 ml/s) for the CTP scan.
    • Start triggering and contrast injection simultaneously.
    • Record equipment delay plus breadth hold time (Y).
    • Record the time it takes to reach 180 HU in the time density curve (X).
    • Use X minus Y as the preset time for the scan to start.

    Intravenous (IV) contrast infusion

    • Inject 60-65 mL (65kg body weight, 640 slice scanner) of iodinated contrast at a rate of 4.5-5mL/s.
    • Inject 50-60 mL of saline flush following contrast injection - with the same injection rate.

    Explanation: helps to flush remaining contrast in veins and maintains a longer contrast flow time.

    Final enhancement of pulmonary arteries should be above 250-300 HU to detect arterial pathologies.

    Post-processing

    • Axial, coronal and sagittal images with ≤3-5mm slice thickness in soft-tissue window.
    • Overlapping maximum intensity projection (MIP) images with 5-10mm slab thickness, in transverse plane.

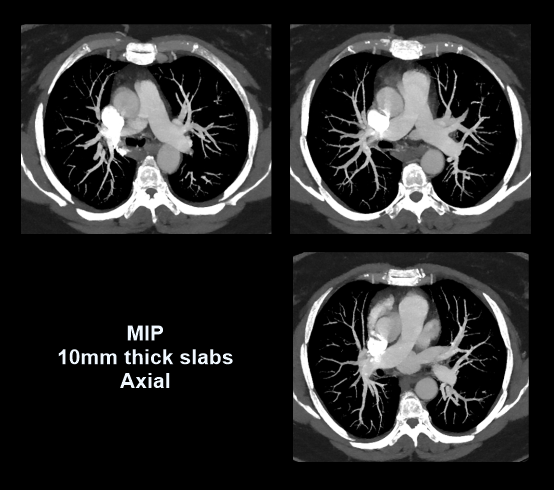

    Maximum intensity projection images of CT pulmonary angiogram.
    • 3D surface shaded images and MIP images.

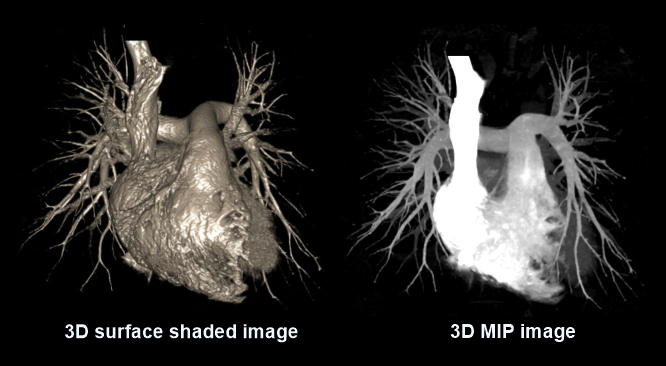

    3D surface shaded (left) and MIP (right) images of CTPA.
    • Curved planner reformation (CPR) images of affected arteries.
    • Axial images with <3 mm slice thickness in both lung (WW: 1500, WL: -500) and bone window (WW: 3500, WL: 350).

    Please refer to our chest non-contrast article for more images on multiplanar reformation (MPR).
